HOW-TO Hold Workpieces AKA Workholding

Sometimes you find yourself needing to hold down a workpiece that's awkward and/or larger than your vise. What to do? Use step blocks

we'll just go over a simple way of its use.

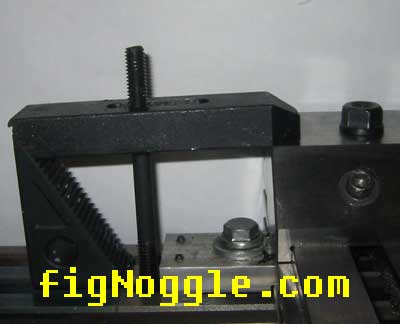

while this is how step blocks work, this is NOT the right way to hold down a workpiece.

the arm should be angled the otherway!

but how do we do this? the step block is too short and it's the tallest one from our set?
stack them up!
ever wonder what 1-2-3 blocks are for? well, since they're ground to fairly accurate dimensions, you can use them for dimensioning or creating offsets at 1", 2" or 3".

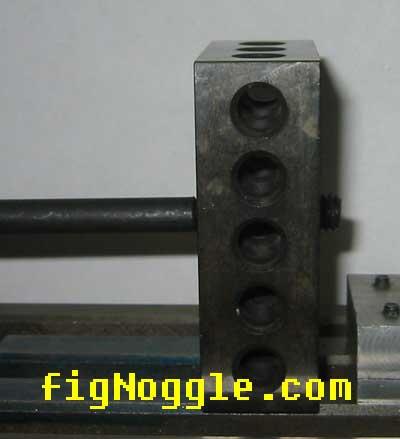

here we show that our bolt from the step block set threads through the block.

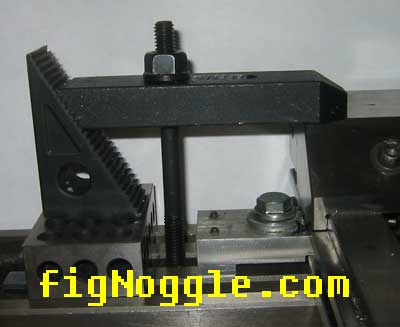

sometimes you need to lift the step block. here's one use.

the 1-2-3 block still needs to be mounted to the table!

in v1 of our cnc conversion, we had to get creative with our workholding. take a look at how we held down the Z-axis brackets.

here's another use.

step clamps are used here to hold a workpiece to a rotary table.

and another.

step clams secure v-blocks to the table and a leadscrew is held down to the blocks.

and another

there are other methods of workholding that use cam-action type clamps and a plate of tapped holes
